Image file verification flow

The purpose of this flow is to display a custom cover for images that contain sensitive information, such as passports, credit cards, or other confidential documents.

Flow Overview​

  • Image is uploaded
  • We check if the verification flow is enabled in the File configuration section under Image file by operator can be downloaded if
  • We check if the picture resolution meets the minimum criteria
  • If the picture minimum dimension is met during upload, we dispatch file.verify_img_file
  • Operator opens a chat. During chat rendering we check:
    • Was the image verified and its sensitivity determined? We apply 4 retries with 4 seconds delay. Each time in this call we dispatch the file.verify event.
    • If the image is sensitive, we show a cover with a Click to reveal button
  • Once the operator clicks Click to reveal, we dispatch the file.download_verified event indicating that the sensitive file was downloaded.
  • Audit log can be configured so reveal actions be logged Chat file reveal. Search for those events with Sensitive chat file reveal action.
  • While configuring Rest API it makes sense to check Skip request body. Only response will be logged. so log messages will be smaller.

Sample flow using Moondream​

In this sample we will set up an image verification process based on https://moondream.ai/

Our goal is to:

  • Display that image is being verified while we process visitor uploaded image. We will listen to the file.verify_img_file event.
  • Set up a bot to do verification and call Rest API
  • We will not set up the file.download_verified event to dispatch notification about verified file being downloaded at this time.

Image meta_msg structure variations

{
  "verified": {
    "success": true,                                                    # [Required] Indicates whether our verification was successful. E.g API is working normally. If you encounter any API error, set `success` to `false`. Only operators with `lhfile,download_unverified` permission will be able to see an image.
    "msg" : "Error message",                                            # [Optional] If verification process failed you can write error messages which will be shown to the operator.
    "sensitive": true,                                                  # [Optional] If verification process succeeded set this to true or you can omit this var completely if file is not sensitive. Just do not set it to save space :)
    "protection_image" : "images/general/sensitive-information.jpg",    # [Optional] If verification process succeeded and you have custom image you can set it as "images/general/sensitive-information.jpg" or do not set it at all and default image will be used.
    "protection_html" : "Your own custom html",                         # [Optional] Set your own custom HTML for verification result output. E.g you can set single string and listen to `file.verify` event and based on your string there. Just replace with proper HTML to save space.
    "btn_title" : "Sensitive Information"                               # [Optional] Set custom sensitive information tile
  }
}

Files configuration​

  • In System configuration > Live help configuration -> Files -> Files configuration choose Verified and has permission to download protected images OR has permission to download unprotected files under Image file by operator can be downloaded if
  • You can also set minimum resolution for image to be required for verification

Rest API​

  • Import Rest API and change YOUR_API_KEY in Headers section with your own API key.

After you have finished setup you can uncheck Log all requests and their responses as system messages. to avoid saving request details.

Bot setup​

  • Import Bot. Choose in bot import window just imported Rest API

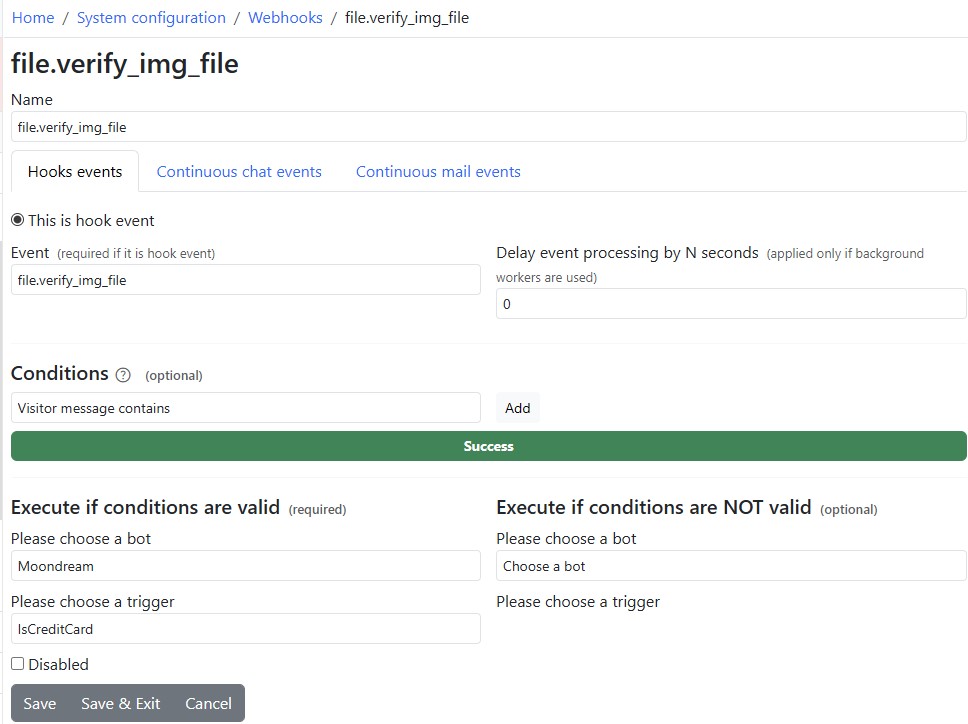

Webhook setup​

We will listen to file.verify_img_file event as it's dispatched once image needs verification.

Permissions​

Scenario A​

  • Has permission to lhfile,download_unverified
  • Does not have permission to lhfile,download_verified. This does not influence anything in that scenario because he has permission to lhfile,download_unverified
  • He will see instantly unverified file content even if file was not verified for sensitivity yet. In that case file.verify won't be fired.
  • If file was verified file.verify will be fired.
  • If image resolution is smaller than required for verification file.verify won't be fired.

Scenario B​

  • Does not have permission to lhfile,download_unverified.
  • Does have permission to lhfile,download_verified
  • If file was verified file.verify will be fired.
  • If image resolution is smaller than required for verification file.verify won't be fired.
  • He won't see file content until its content is verified.

Scenario C​

  • Does not have permission to lhfile,download_unverified.
  • Does not have permission to lhfile,download_verified.
  • He won't see file content if image is not verified or its content is sensitive.
